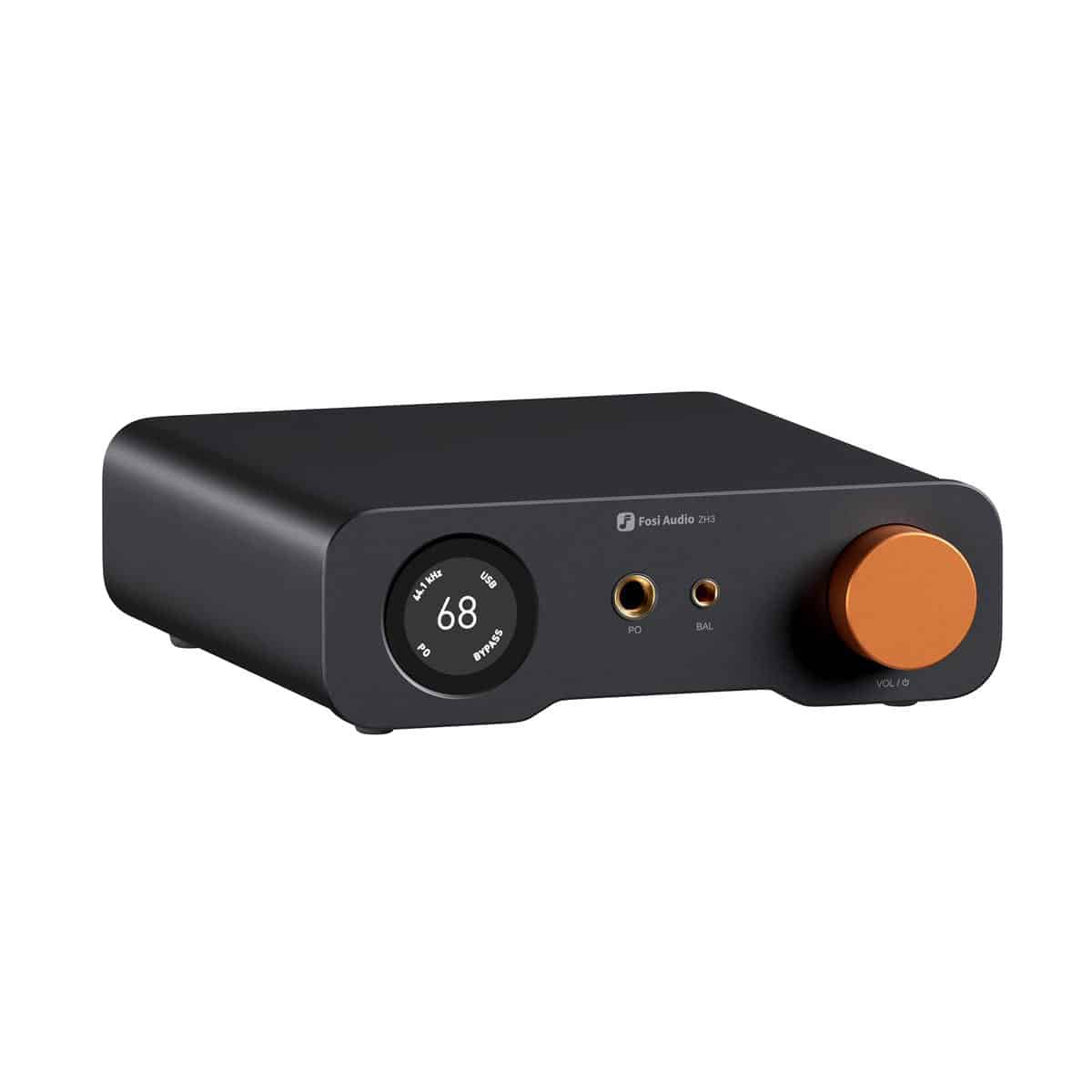

Fosi Audio ZH3
৳ 25,500
Specifications
General
- Chipset: XMOS XU316 + AKM4493SEQ + OPA1612 × 4
- Inputs: Coaxial, Optical, USB, RCA
- Outputs: 4.4mm Balanced, 6.35mm Single-Ended, RCA, XLR
- Headphone Impedance: 16 – 300 Ω
- Power Input: DC 12 V
Supported Sampling Rates
- USB: PCM 32-bit/768 kHz, DSD512
- Optical: PCM 24-bit/192 kHz
- Coaxial: PCM 24-bit/192 kHz
4.4 mm Balanced Headphone Output
- Maximum Output Power: 2570 mW × 2 (32 Ω, THD+N < 1%)
- SNR: ≥ 119 dB
- Dynamic Range: ≥ 119 dB
- THD: ≤ 0.00018%
- Noise Floor: ≤ 4.9 μV
6.35 mm Single-Ended Headphone Output
- Maximum Output Power: 640 mW × 2 (32 Ω, THD+N < 1%)
- SNR: ≥ 121 dB
- Dynamic Range: ≥ 121 dB
- THD: ≤ 0.00024%
- Noise Floor: ≤ 1.9 μV
Fosi Audio ZH3
All-in-One Desktop HiFi DAC/Headphone Amp/Preamp
Comprehensive Desktop HiFi Solution
All-in-One Desktop HiFi
DAC / Headphone Amp / Preamp
Provides versatile interfaces for headphones and active speakers. Easily switch outputs and control your desktop HiFi.
CHIPS
Audiophile-Grade
Flagship Chipset
XMOS + AKM flagship decoding with 4 high-performance dual op-amps deliver clarity, precision, and transparency.

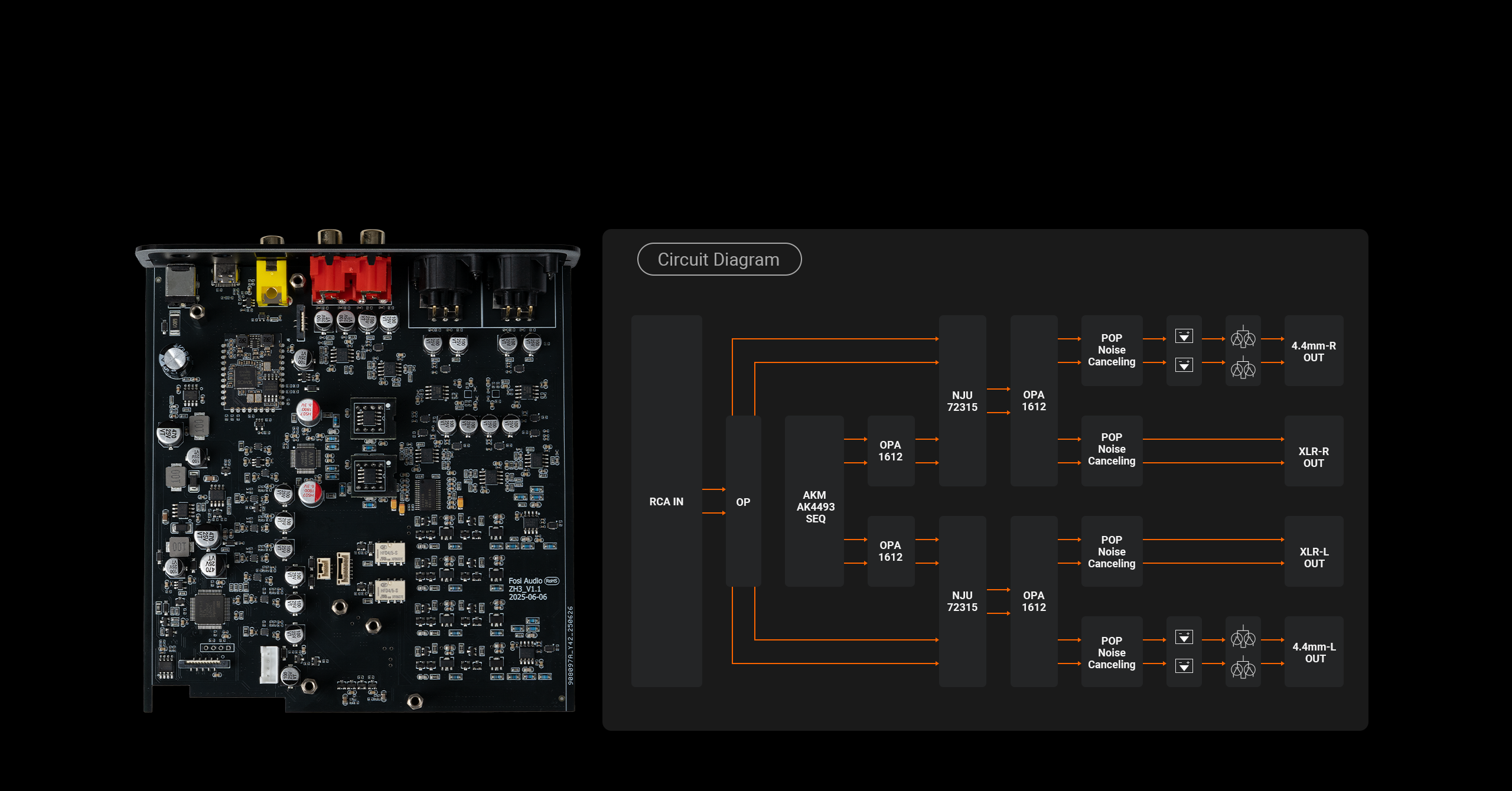

Fully Balanced Headphone Amplifier Circuit
Exclusively tuned by Fosi’s acoustic team, with 1.9μV noise floor and 117dB crosstalk for clearer separation of vocals and instruments. Easily replaceable op-amps, meeting your pursuit of a personalized audio experience.
Insane Level of Power
Delivering up to 2570mW per channel into 32 ohms, far overkill for mainstream headphones.
Three-Level Gain Adjustment
Compatible with 16–300Ω headphones, delivers strong control to handle both IEMs and over-ear headphones with ease.
Comprehensive Connectivity
ZH3 supports RCA input, allowing easy direct connection to analog sources such as turntables.

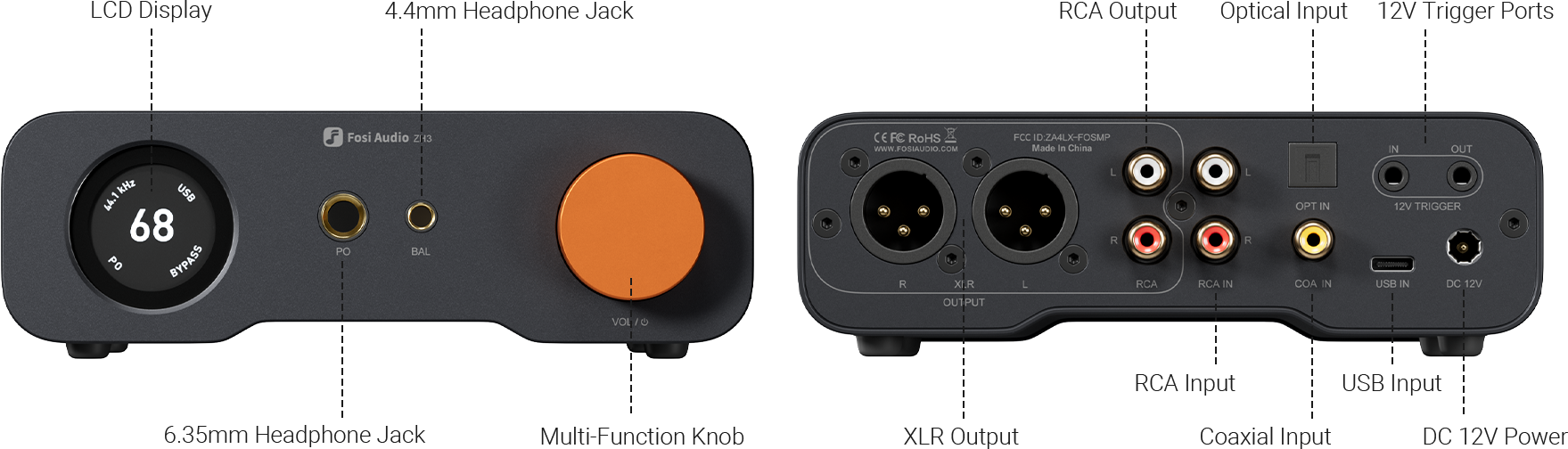

Equipped with 4.4mm and 6.35mm jacks plus XLR/RCA outputs, offering seamless control for headphones and active speakers.
CONNECTOR
Seamless Integration for HiFi and Gaming
Supports UAC 1.0 and 2.0; UAC 1.0 is for connecting gaming consoles such as PS5 and Switch.

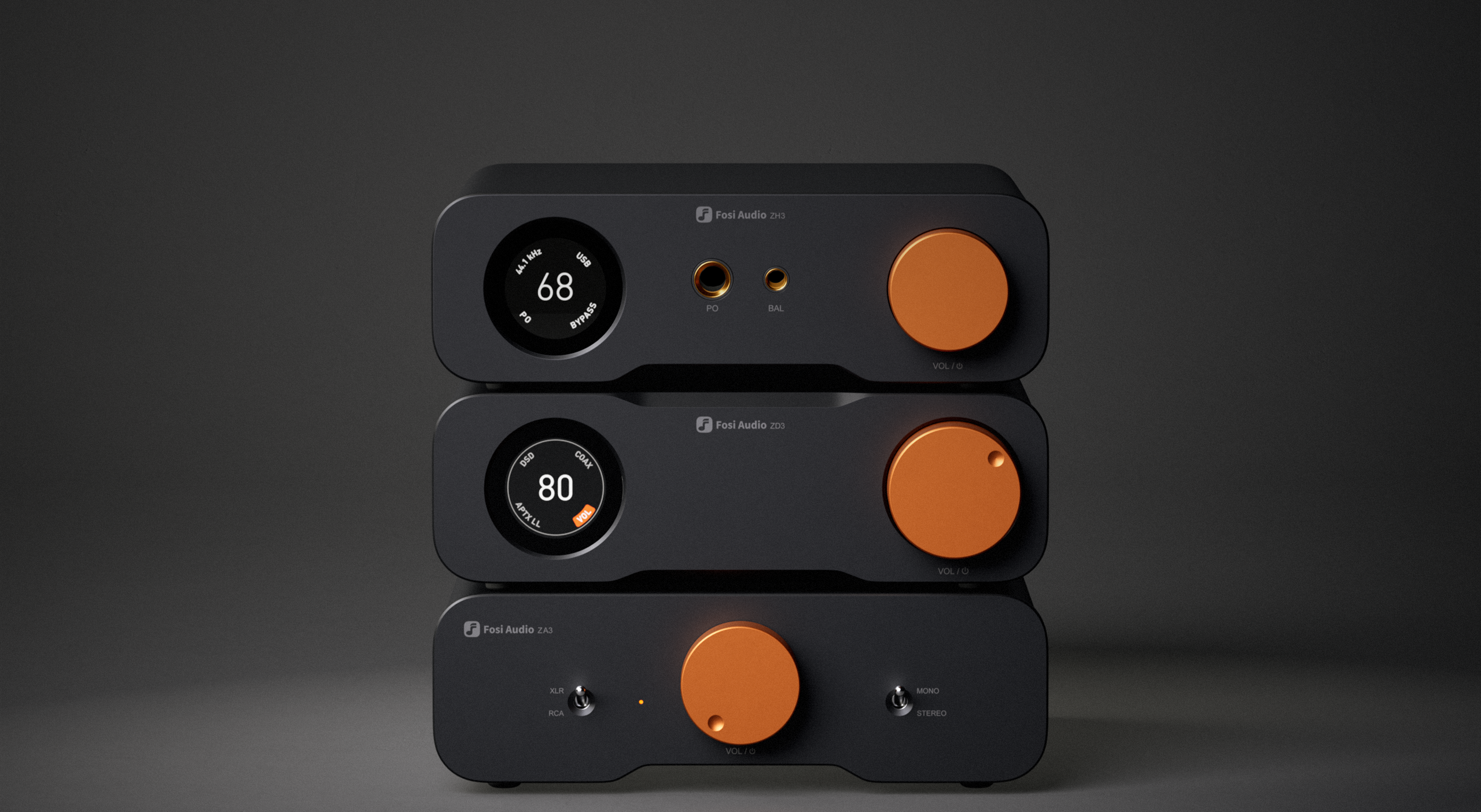

Z-Series Family Design
Cohesive family aesthetics, pairing effortlessly with ZD3 and ZA3 for a matching HiFi ensemble.

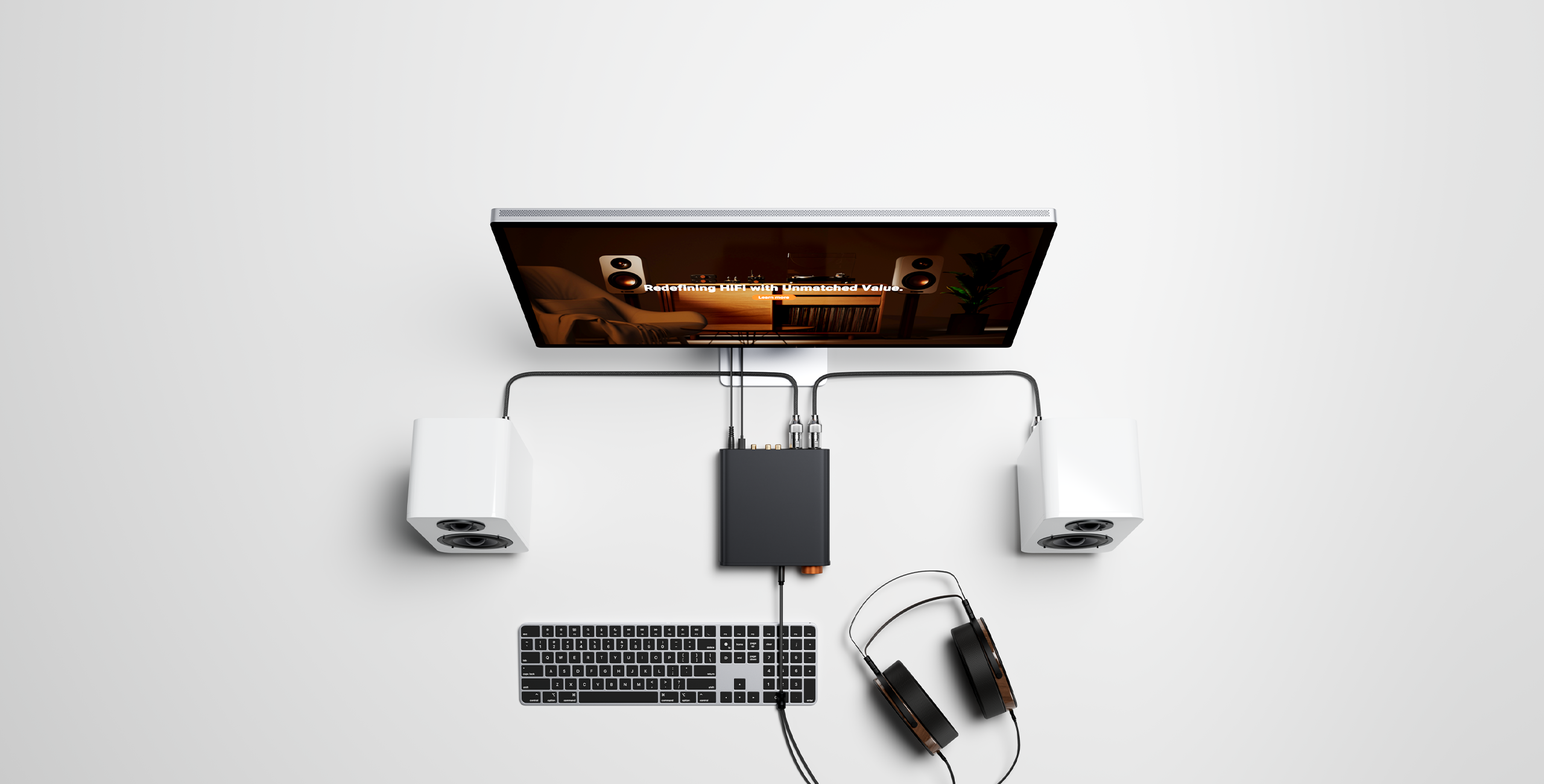

Thoughtful Companion for Desktop HiFi
Comprehensive Desktop HiFi Solution

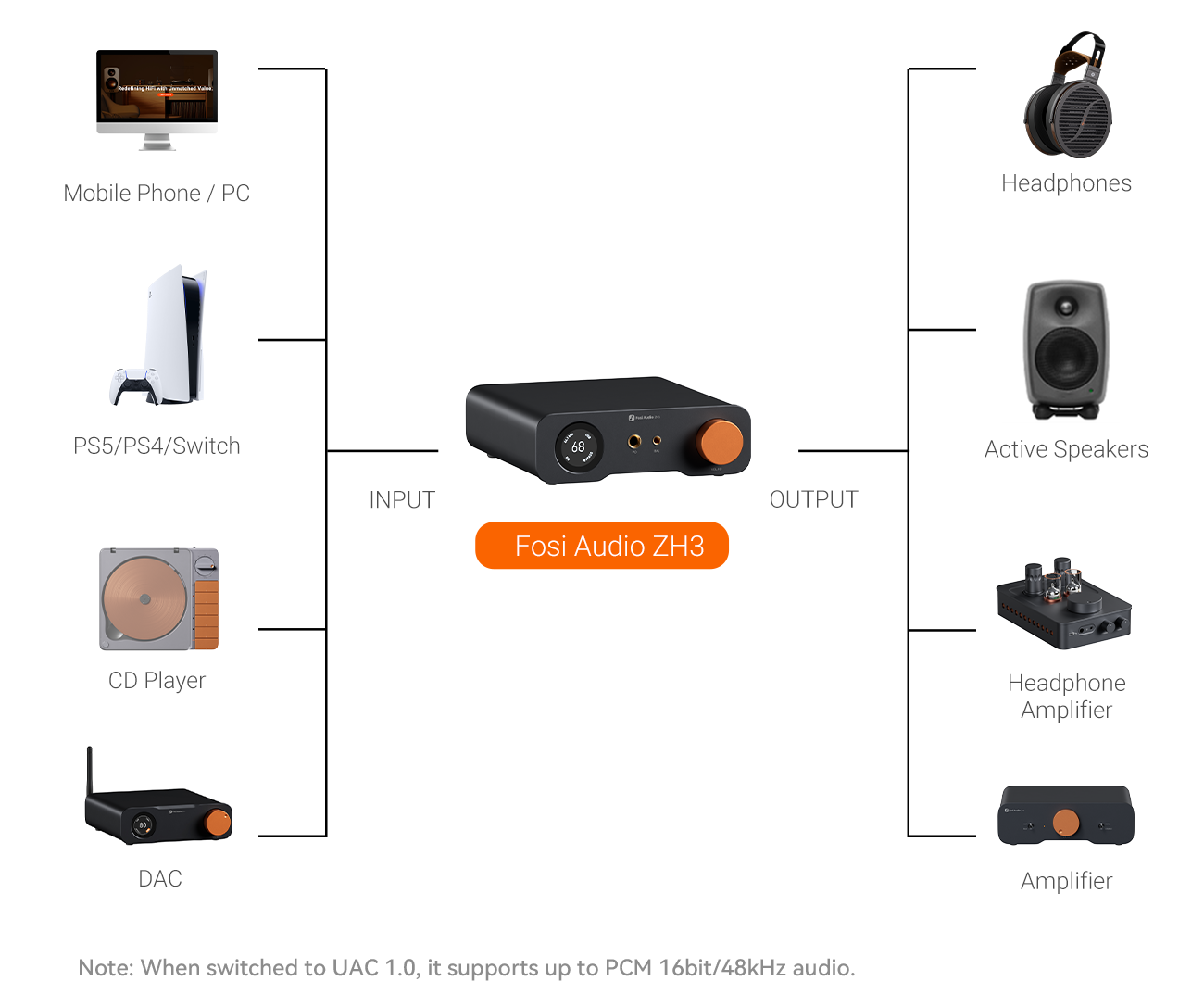

With comprehensive input and output options, the ZH3 functions as a DAC, headphone amplifier, and preamp, which can be connected to IEMs, over-ear headphones, active speakers, and amplifiers. Featuring UAC 1.0 and 2.0, it is also compatible with gaming consoles, ensuring seamless connectivity across multiple desktop devices.
- Chipset: XMOS XU316+AKM4493SEQ+ OPA1612 x 4
- Input: Coaxial/Optical/USB/RCA
- Output: 4.4mm/6.35mm/RCA/XLR
- SINAD ≥ 115dB; SNR ≥ 121dB; THD+N ≤ 0.00018%; Noise Floor ≤ 1.9μV
