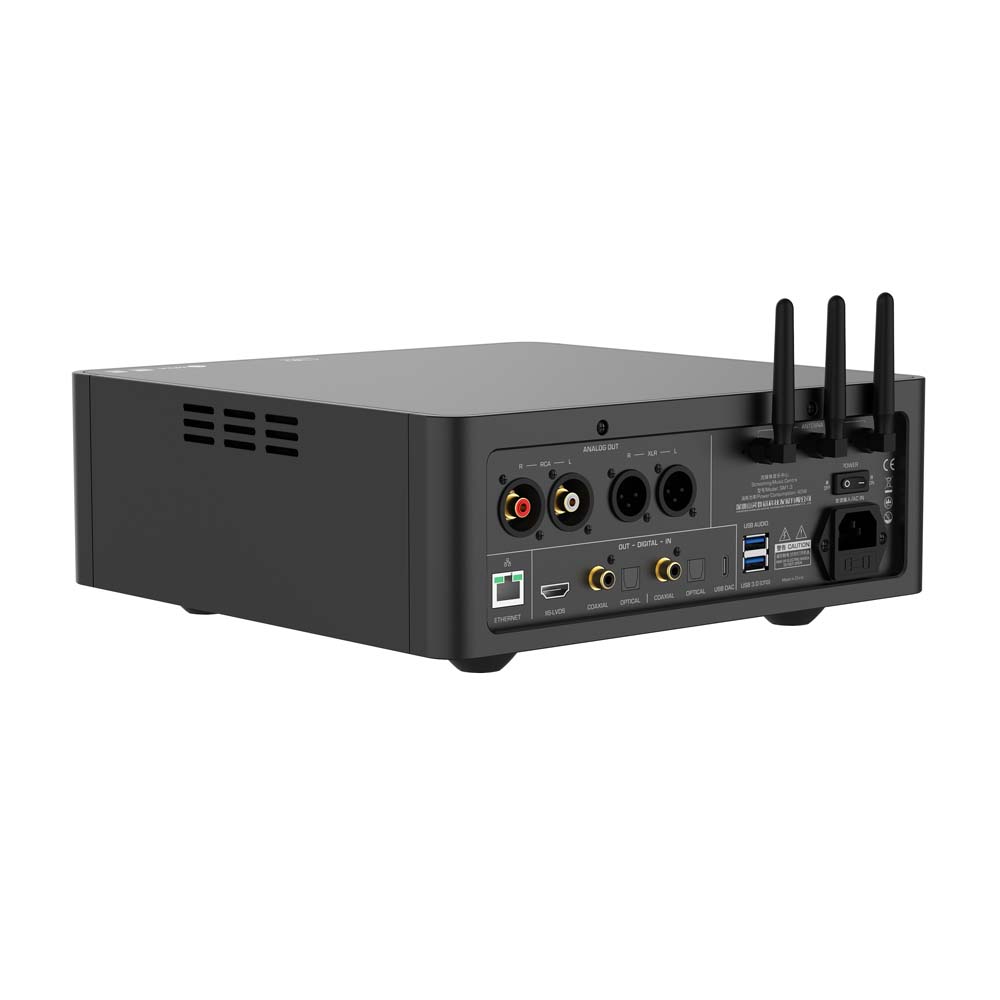

Shanling SM1.3 Flagship Streamer
- Brand-New System, based on closed Android 12
- 64-bit ARM Cortex A55 CPU
- 8-inch Full-HD touch screen
- 4GB RAM + 64GB ROM
- Built-in M.2 SSD Slot
- AKM AK4499EX DAC & AK4191 Modulator
- Muses8920 based Analog out
- TPA6120 Dedicated Headphone amplifier
- I2S with FPGA offering 10 compatibility modes
- XMOS XU316 USB Input
- Qualcomm QCC5125 Bluetooth Module
- BT v5.2 Supporting LDAC, aptX HD, aptX Adaptive, aptX LL, aptX, AAC, SBC
- Dual Band Wi-Fi 6 Module
- Gigabit LAN port
- Dual Linear Transformer Power Supply, split between System & Audio parts
- 32 bit / 764 kHz, DSD512 & MQA 16x
- Streaming apps: Spotify, Tidal, Apple Music, Apple Classical, Amazon Music, KKBox
- Support NAS, Samba, DLNA, Airplay 2
- Dimensions (including base): 280mm*280mm*110mm
- Weight: 6.4kg
- Screen: 5.8-inch 2160*1080 Sharp HD touch screen
- Audio format: DSD, DXD, APE, FLAC, WAV, AIFF/AIF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, OPUS, TAK, etc., support CUE.
৳ 135,000.00
With the SM1.3, Shanling presents a streamer and DAC that aims to become the core of any good HiFi system. Its AKM AK4499EX and AK4141 chip combo enables it to handle signals up to PCM 32bit 768kHz and DSD512. Its support for a wide range of streaming services, as well as compatibility with DLNA, Airplay 2 and Samba software, make it a flexible network player that will fit seamlessly into your setup.
Input & Outputs:
Digital Input: Optical / Coaxial / Bluetooth / USB
Digital Output: Optical / Coaxial / I²S / USB
Analogue output: RCA / XLR / 6.35mm headphone output
Others: USB-A (for USB drive connection)
THD+N: 0.0003%
Dynamic range: 118dB
Channel Separation: 117dB
Signal-to-noise ratio: 118dB
XLR Output:
Output level: 4.72V
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0003%
Dynamic Range: 121dB
Channel Separation: 117dB
Signal-to-noise ratio: 121dB
Headphone Output:
Output power:
Low Gain: 0.79mV@32Ω (19mW@32Ω)
Medium Gain: 2.4V@32Ω (180mW@32Ω)
High Gain: 5.7V@32Ω (1015mW@32Ω)
High Gain: 6.3V@300Ω (132mW@300Ω)
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0013%@ 32Ω (A-Weight@2.4V中增益)
Dynamic Range: 117dB@32Ω
Channel Separation: 70dB@32Ω
Signal-to-Noise Ratio: 117dB@32Ω (A-Weight High Gain)
Noise: 111dB (Low Gain)
Output Impedance: 4.7Ω
Coaxial Output: PCM192kHz / 24bit
Optical Output: PCM192kHz / 24bit
USB Output: PCM768kHz / 32bit, DSD512
I²S output: PCM768kHz, DSD512
